Rounded and Notched steel palisade fence panels galvanized palisade fence
Product Introduction
Palisade Fencing is an extremely robust security fencing system which will provide a high level of security, as well as providing protection for your premises and equipment, plus effective boundary demarcation. Steel Palisade Security Fencing is a popular choice for railways, industrial sites, agricultural areas, museums, and high security buildings.
The steel pales can be D-section, W-section for higher security or other sections are available on request. Pale material thickness depends on the fence height, and the pale head style options are rounded, rounded and notched, single-spiked or splayed triple-spiked. Standard fixings are galvanised steel bolts with tamper-resistant shear nuts, or stainless steel rivets can be used to provide higher security.
One of the advantages of palisade over some other types of fencing is that it is easy to add extra security measures. Options range from barbed wire, razor wire and rotating toppings, through to monitored electric pulse fencing, concrete sills and buried pales. The gaps between the pales provide visibility for CCTV or viewing by security guards, provided the angle of incidence is not too great.
We always use our own teams of trained installers, not casual labour, so we can guarantee the quality of the installation.
Properly installed, palisade fencing offers long, maintenance-free life. Nevertheless, should the fence sustain any damage, we can readily replace individual pales or complete panels.
Specifications of Rounded and Notched steel palisade fence
| Heights | 0.9 m, 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.4 m, 3.0 m, 3.6 m as standard (other heights available on request) |
| Pale profile | D-section or W-section (other sections available on request) |

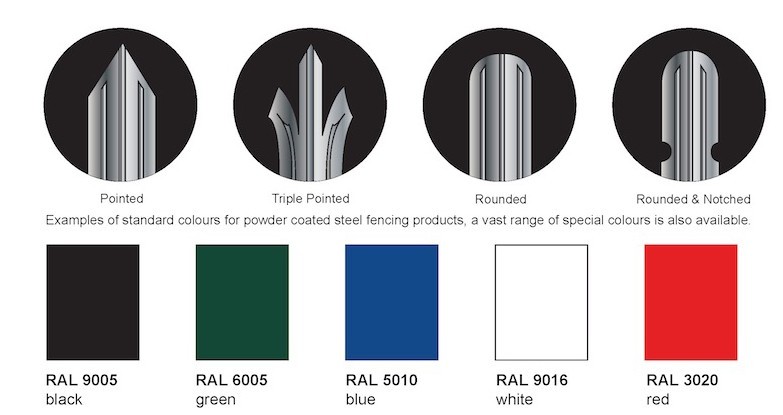

| Pale head styles | rounded, rounded and notched, single-spike, splayed triple-spike |
| Pale material thickness | D-section 2.5 mm to 3.5 mm W-section 2.0 mm to 3.0 mm |
| Panel width | 2750 mm as standard (other widths available on request) |
| Rails | rolled steel angle (RSA) 50 x 50 x 2.75 mm |
| Posts | 102 x 44 mm steel RSJ (127 x 76 mm for fences above 2.7 m)hot-dip galvanised and optional polyester powder coat finish |
| Fixings | zinc-plated steel bolts with shear nuts as standard (stainless steel rivets available for higher security) |
| Finish | hot-dip galvanised plus optional polyester powder coating in green, black or other colours on request |
| Compliance | BS EN 1722-12, BS EN ISO 1461, NG TS 2.22 |
| Additional security measures | contact us to discuss options (eg barbed wire, razor wire or rotating toppings, monitored electric pulse fencing, concrete sills, buried pales) |
Features of Rounded and Notched steel palisade fence
Providing high level of security.
With high damage and vandal resistance.
Anti-thief and unscalable.
Durable and robust.
Attractive yet forbidding appearance.
Without sight blocks.
Follow the terrains.
Easy to transport and install.
Anti-weather with long lifespan.
High rust and corrosion resistance.
Low maintenance and easy to repair - just replace the damaged pales by a new one.
Applications of Rounded and Notched steel palisade fence
Schools.
Parks and churches.
Stadiums.
Industrial sites.
Railways and highways.
Premises, yards and companies.
Access to buildings, sports and other facilities, etc.
Our Service:
1. After the worker finished the production, our QC will check the overall quality.If not pass our standard will rework.
2. When packing the products, our Packing Department will check the products again.
3. Any small problem happening in our product will be solved at the most prompt time.
