D Section Back Yard Palisade Fence Good rigidity metal palisade fencing
Product Introduction
Metal steel palisade fencing, supplied in kit form, comprises pieces of fence panel in the length of 2.75 meters. The panel is composed of seventeen palisade pales, one post, two or three palisade rails and correct numbers of fittings. In full range of height from 1.2m to 3.6m, it is normally assembled for domestic, commercial or industry applications.
Palisade gates, as the access to your premises, combine with palisade fence panel together to form a formidable barrier and solute your security problems. It can be manufactured with single or double leaves and available in swing and sliding styles as your request.
Palisade pales, as the basic components of palisade fencing and gates, are available in W section, D section and angle iron types. The pales are manufactured in the height of 1.2m to 3.6m with different head types.
Palisade fence posts, comprising RSJ post and square post, can be fixed to the ground in the forms of concrete in or bolt down. Different types of post implied different assembly way. RSJ posts are normally bolts to horizontal rails with the help of fishplates while post clamps are needed when fastening square post to adjacent palisade rails.
Palisade rails, the only horizontal part of palisade fencing, connect the vertical palisade pales and post together. Each palisade fence panel comes with two rails, yet the third rail is needed to maintain integrity when it comes to the palisade fence in height of over 3 meters.
Palisade fittings include fishplate for RSJ post, post clamps for square post, round head bolts and anti-vandal nuts.
Specifications of Good rigidity metal palisade fencing

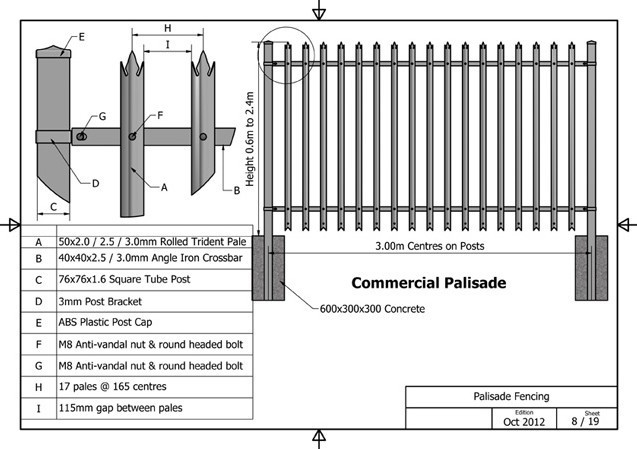

| Components | Types | Quantity per panel |
| Pale | W section, D section or angle pales | 17 |
| Post | RSJ post or square post | 1 |
| Rails | Rolled steel angle | 2 or 3 according to fence height |
| Fitting | Straight fishplates or post clamps | 2 |
| Bolts and nuts | 38 |
| Height | Suggested Pale Thickness (mm) | Posts | Post Height | Rails |
| Meters | 'D' Section | 'W' Section |
| 1.8 | 3.00 | 2.00 to 3.00 | 100 x 50 | 2.325m | 45 x 45 x 6 |
| 2.0 | 3.00 | 2.00 to 3.00 | 100 x 50 | 2.725m | 45 x 45 x 6 |
| 2.1 | 3.00 | 2.00 to 3.00 | 100 x 50 | 2.725m | 45 x 45 x 6 |
| 2.4 | 3.00 or 3.50 | 2.00 to 3.00 | 100 x 50 | 3.125m | 50 x 50 x 6 |
| 3.0 | 3.00 or 3.50 | 2.00 to 3.50 | 100 x 50 | 3.925m | 50 x 50 x 6 |
| 3.6 | 3.00 or 3.50 | 3.00 to 3.50 | 100 x 50 | 4.725m | 50 x 50 x 6 |
Features of Good rigidity metal palisade fencing
Anti-rust surface treatments:
All the products are hot dipped galvanized complying with BS EN ISO 1461: 1999. To fit your scheme, it also can be PVC coated with various colors for higher rust resistance.
Customizable palisade fencing:
Custom palisade fencing is also available. All your customized palisade fences will be inspected by our quality control departments to ensure the products are correct to your desired specification. After testing, the products are hot dipped galvanized and PVC coated as your requirements. Then the final test will be carried out by our experienced engineers.
Applications of Good rigidity metal palisade fencing
Palisade Fening is available in varying specifications to suit a variety of commercial and industrial applications including:
- Car parks both open and undercover.
- Electricity substations.
- Embassies.
- Ports.
- Railway stabling yards
- Sports grounds.
- Business factories, warehouses, and offices.
- Gas & Water Utilities.
- Waste Depots.
- Council swimming pools and equipment yards.
- Schools.
- Police Fire and Ambulance stations.
- Any perimeter that requires a secure boundary and/or fence.
Why choose us?
1>. Simple structure.Beautiful and practical.
2>. Easy for transport. Simple installation in various land situations.
3>. Especially suitable for fencing in mountains, slopes, and bending areas.
4>. Economic cost. Suitable for volume using.
5>. High security.
Product Tags:
|
|
D Section Palisade Fence Panels , 9ft Length Backyard Metal Fencing Images
|
