Long Lasting Powder Coating Heavy Duty Cattle Panel 1.8m X 2.1m

Name: Long Lasting Powder Coating Heavy Duty Cattle Panel 18m X 21m
Brand: AOBIAO
Price: 40 USD

Long Lasting Powder Coating Heavy Duty Cattle Panel 1.8m X 2.1m Manufactures

Brand Name : AOBIAO

Model Number : CPM-23

Certification : ISO9001,CE

Place of Origin : China,Anping

MOQ : 100 sets

Price : USD 40-75 per set

Payment Terms : T/T, Western Union, L/C

Supply Ability : 9000 sets per month

Delivery Time : 20-30 days

Packaging Details : packing: in pallet or in bulk,According to customer requirements

Product name : Long Lasting Powder Coating 1.8 X 2.1m Stable Horse Round Yard Panel

Surface treatment : Powder Coating

Vertical pipe : 50×50mm,40×40mm

Horizontal pipe : 32mm ODX1.6mm, 42mm ODX1.6mm

Keywords : Powder Coating 1.8 X 2.1m Stable Horse Round Yard Panel

panel usage : livestock yard farm panels

Main markets : Australia,America,Canada,New Zealand,etc

Common Size : 1.8 x 2.1m, 1.6 x 2.1m 1.8 x 2.4m

Rail : 4 / 5 / 6, or as your request

Accessories : Two pins and lugs

Contact Now

Long Lasting Powder Coating 1.8 X 2.1m Stable Horse Round Yard Panel

Brief Introduction

Livestock Panels are made from high quality galvanized tubing and are perfect for your Breeding and Farm needs.

Livestock Panels, which was include several parts, the cattle panel, cattle panel gate, cattle crush, race bow, man gate, cattle sliding gate, G force gate, etc.

Livestock panels are ideal way to get cattle yards built fast. These panels are also portable and suitable to set up holding yards of any size. They come in four different configurations to suit your requirements. Tough and strong, they withstand a range of stock pressure and come ready to use with 16mm pins included.

Long Lasting Powder Coating Heavy Duty Cattle Panel 1.8m X 2.1m

Specification of 1.8 X 2.1m Stable Horse Round Yard Panel

Each panel includes:

2 x Foot Plates

2 x 180mm Drop Pins (tapered end)

2 x 40mm x 40mm Square Post Caps

2 x 40mm x 5mm FMS L Cleats used with slotted 20mm x 30mm holes

2 x 40mm x 5mm FMS C Cleats used with slotted 20mm x 30mm holes

Material	Low Carbon Steel
Surface	Hot Dipped Galvanized/powder coating
Size	1.8 x 2.1 M(For Cattle, Horse)	6 rails/bars
	1.6 x 2.1 M(For Sheep)	5 rails/bars
Pipe Type	Square Pipe	40 x 40mm, 50 x 50mm
	Round Pipe	32mm
	Oval Pipe	30 x 60mm, 40 x 80mm
Pipe Thickness	1.5mm, 1.6mm
Gate Size	As customer's demands
Welded Part	U lugs, L lugs, caps, panel base

Long Lasting Powder Coating Heavy Duty Cattle Panel 1.8m X 2.1m

Fuatures of 1.8 X 2.1m Stable Horse Round Yard Panel

1. Simple installation: easy and quick operation (installation, disassembly)
2. Robust and stable: The welding process makes the panel stronger, durable and not easy to break.
3. Livestock protection: There are no sharp edges, and the surface is very smooth.
4. Environmental protection: without any harmful substances, protecting animals and grassland.
5. High cost performance: Provide a long service life for your farming at a lower cost.

Long Lasting Powder Coating Heavy Duty Cattle Panel 1.8m X 2.1m

Technological process

1. Raw material

2. cutting

3. welding

4. cleaning

5. anti-rust painting

6. zinc spraying

7. packing

Long Lasting Powder Coating Heavy Duty Cattle Panel 1.8m X 2.1m

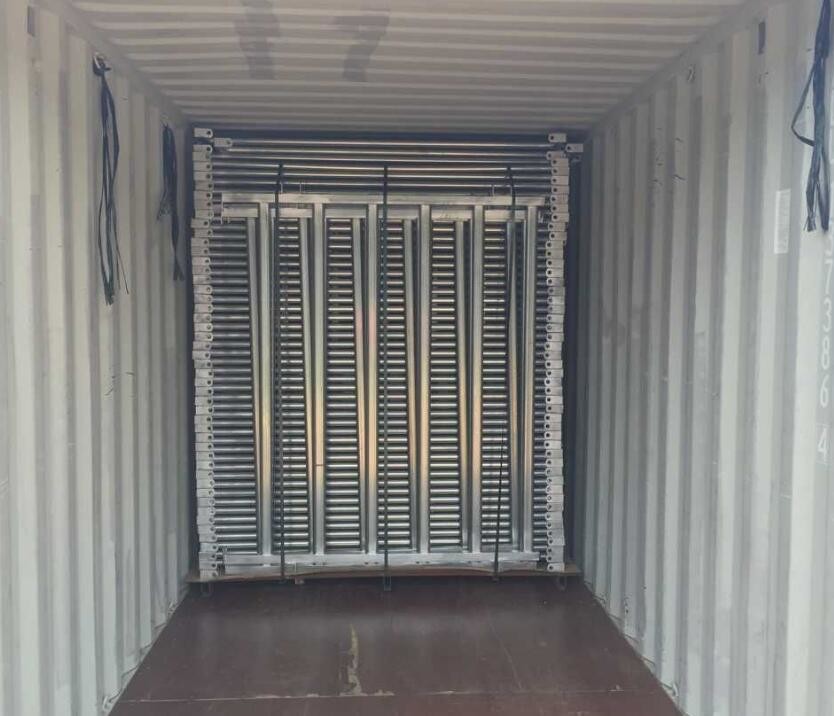

Package And Delivery

Package: Bulk or In Steel Pipe Pallet
Delivery: About 20-30days after received the deposit, depend on quantity.

Long Lasting Powder Coating Heavy Duty Cattle Panel 1.8m X 2.1m

Our service

1. More than 10 Years manufacturing experience.
2. Professional research and development team.
3. Zero Customer Complaints for several years.
4. Human-based management.
5. Environmental Protection.
6. Excellent after-sales service.
