2.75m Long By 2.4m High Steel Palisade Security Fencing Hot Dipped Galvanized Powder Coating

Name: 275m Long By 24m High Steel Palisade Security Fencing Hot Dipped Galvanized Powder Coating
Brand: AOBIAO
Price: 1 USD

2.75m Long By 2.4m High Steel Palisade Security Fencing Hot Dipped Galvanized Powder Coating Manufactures

Brand Name : AOBIAO

Model Number : FSL-PF-003

Certification : ISO,CE

Place of Origin : Anping China

MOQ : 50 sets

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000 sets per month

Delivery Time : About 25-30 days after receiving the deposit.

Packaging Details : pallets

Product name : 2.75m Long By 2.4m High Hot Dipped Galvanized And Powder Coating Palisade Fencing Panels

Width : 2.75m, 2.98m, 3.0m

Height : 1200mm-3000mm

Rail Angle : 50x50mm

Upright Pales : 62mm, 65mm, 68mm,70mm

Angle Thickness : 5.0mm, 6.0mm

Pale thickness : 2.0mm, 3.0mm

H Post : 50x100mm

Style : D section or W section

Surface finish : hot dip galvanized, powder coating

Type : Fencing,Trellis & Gates,"D"or"W",palisade fence

Application : Residential,Garden,school,fence

Usage : Home Decration,Garden Decoration,Interior Decoration,Outdoor Decoration

Keywords : palisade fence,Steel Palisade Fencing

Pale top : Single pointed Triple pointed Square Round and notched Rounded

Contact Now

2.75m Long By 2.4m High Hot Dipped Galvanized And Powder Coating Palisade Fencing Panels

Palisade fencing panels introduction

It is a high spec security fencing it is designed to provide a formidable barrier against intrusion and theft. It is manufactured using hot-formed and cold-rolled substantial steel sections. It is a cost effective way to providing a high level of security to the boundary line of any property.

2.75m Long By 2.4m High Steel Palisade Security Fencing Hot Dipped Galvanized Powder Coating

Palisade fencing panels size

Height	Post Dimensions	Rail Dimensions	Support Legs	Corrugated Steel Palisades
1.2m	102x44 or 100x55	40x40x6mm	1	W - 2.0mm or D - 3.0mm
1.5m	102x44 or 100x55	40x40x6mm	1	W - 2.0mm or D - 3.0mm
1.8m	102x44 or 100x55	40x40x6mm	1	W - 2.0mm or D - 3.0mm
2.0m	102x44 or 100x55	45x45x6mm	1	W - 2.0mm or D - 3.0mm
2.1m	102x44 or 100x55	45x45x6mm	1	W - 2.0mm or D - 3.0mm
2.4m	102x44 or 100x55	45x45x6mm	1	W - 2.0mm or D - 3.0mm
2.7m	102x44 or 100x55	50x50x6mm	1	W - 2.0mm or D - 3.0mm
3.0m	127x76	50x50x6mm	2	W - 2.5mm or D - 3.5mm
3.6m	127x76	50x50x6mm	2	W - 2.5mm or D - 3.5mm

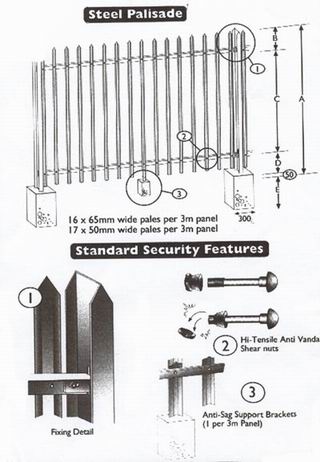

Palisade security fencing drawing

2.75m Long By 2.4m High Steel Palisade Security Fencing Hot Dipped Galvanized Powder Coating

Palisade security fencing details and options

Post centers

2.75m

Heights

1.2m
1.5m
1.8m
2.0m
2.1m
2.4m
3.0m

Paling tops

Single pointed
Triple pointed
Square
Round and notched
Rounded

Pale thickness

‘W’ profile 2.0mm – commercial specification
‘W’ profile 2.5mm – general purpose to BS: EN: 1722 Pt 12
‘W’ profile 3.0mm – security purpose to BS: EN: 1722 Pt 12
‘D’ profile 3.0mm – general purpose to BS: EN: 1722 Pt 12
‘D’ profile 3.5mm – security purpose
‘D’ profile 4.0mm – security purpose to BS: EN: 1722 Pt 12

Horizontal cross rails

Three standard sizes to suit height and site requirements.

45x45mm for 1.2, 1.5 and 1.8m heights
50x50mm for 2.0, 2.1 and 2.4m heights
65x50mm for 3.0m

2.75m Long By 2.4m High Steel Palisade Security Fencing Hot Dipped Galvanized Powder Coating

Accessories

2.75m Long By 2.4m High Steel Palisade Security Fencing Hot Dipped Galvanized Powder Coating

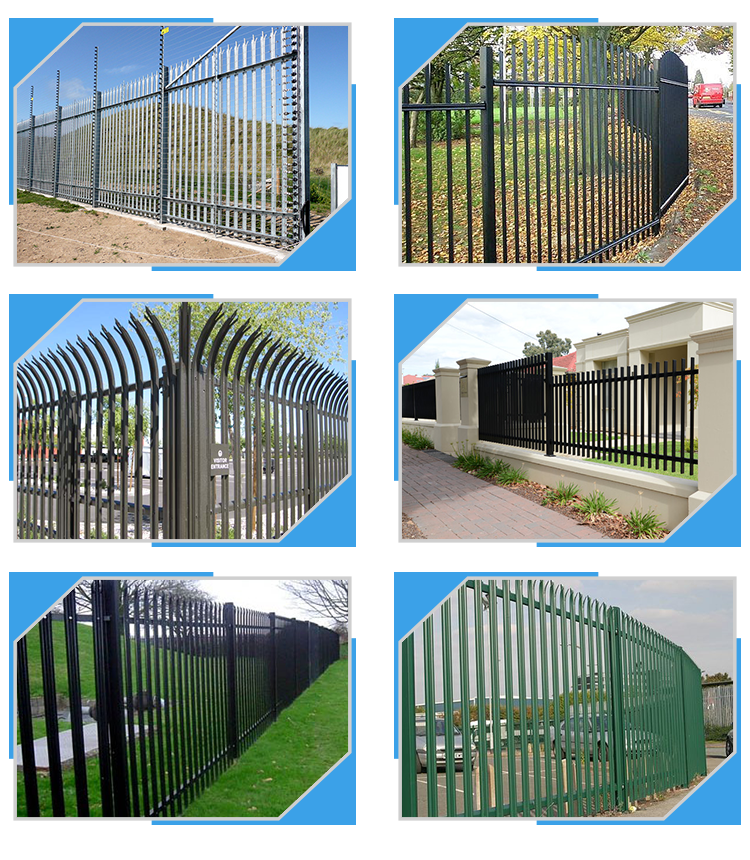

Palisade fencing panels usage

Common uses include railway and track protection, schools, colleges and universities, research laboratories, motorways and highways protection, utility companies protection and around industrial sites.
