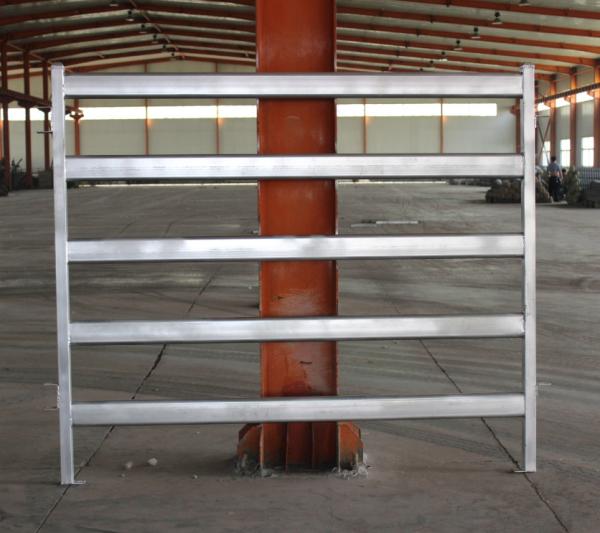

Easily Assembled Long Life Galvanized Cattle Panel Gate livestock panels
Brief Introduction
1.It is made with welded hot dip galvanized pipes for the use of fencing livestock, such as cattle,cow,bull,calves,Dairy sheep,goat,dog,etc.
2.We stock a large variety of cattle panels, many different lengths and sizes. Our panels come with pins, caps and feet.
3.Our cattle fence panel, made of high quality galvanized square, round and oval pipe is ideal for protecting horse. It has 3-7 rails to support the fence and each rails has different spacing to prevent horse hooves and feet from catching in the fence. It can be used at ranch, farm in shape of round pen and fence box based on the horses' height and number. Our fence panel is produced under professional cut short machine, welded team and packing technology.
Specification of Easily Assembled Galvanized Cattle Panel
1>round style
| material | pre hot dipped galvanized steel pipe |
| finishing(zinc coating) | more than 15 microns |
| Height x Length | 1800mm x 2100mm |
| vertical pipe | 32mm O.D x1.6mm thickness 42mm O.D x 1.6 mm thickness |
| horizontal rails | 32mm O.D x1.6mm thickness 42mm O.D X 1.6mm thickness (6 round rails) |
| Welding | Fully welded post brackets |
| welds | bull bars are fully welded, each weld is protected with epoxy paint |
2>square tube style
| material | pre hot dipped galvanized steel pipe |
| finishing(zinc coating) | more than 15 microns |
| Height x Length | 1800mm x 2100mm |
| vertical pipe | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| horizontal rails | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness (6 square rails) |
| Welding | Fully welded post brackets |
| welds | bull bars are fully welded, each weld is protected with epoxy paint |
3> oval tube style
| material | pre hot dipped galvanized steel pipe |
| finishing(zinc coating) | more than 15 microns |
| Height x Length | 1800mm x 2100mm |
| vertical pipe | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| horizontal rails | 30x60mm oval rail x 1.6mm thickness 40x80mm oval rail x 1.6mm thickness 40x120mm oval rail x 1.6mm thickness (6 oval rails) |
| Welding | Fully welded post brackets |
| welds | bull bars are fully welded, each weld is protected with epoxy paint |
Fuatures of Easily Assembled Galvanized Cattle Panel
1.Portable: easy fast to handle (set up, remove and put down), makes the fence panel very flexible.
2.Robust: interlocking system makes the fence very stable; quality steel and fully welding makes the panel more stronger; heavy duty and anti- broken; high zinc or PVC coated make the fence durable.holes or lay foundations.And it benefit grassland protection.
3.Environment Protection: connection with welded to bracket lugs and joining pins, no need to dig.
4.Livestock Protection: no sharp edge, very smooth welding spot finishment.
5.Cost-effective: give your corral years of service and minimal maintenance at a low initial cost.

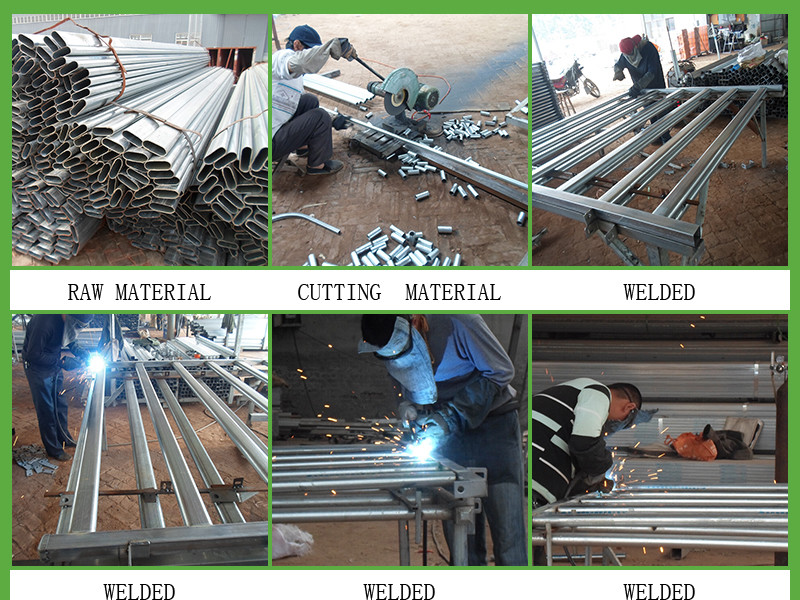

Technological process
1.Raw material 2. cutting 3.welding 4.cleaning 5.anti-rust painting 6.zinc spraying7.packing
Our service
(1) Factory directly sale.
(2) It can customized according to the requirements or drawings.
(3)With the fastest speed of delivery.
(4)Answer questions in a timely
(5)Enquiry will be replied in 2 hours.
(6)If you have any question,please tell me freely.
