Iron Round Pipe 5 Ft High Heavy Duty Cattle Panel Hot Dip Galvanized

Product Categories

Anping Aobiao Wire Mesh Products Co.,Ltd

Contact Now

Iron Round Pipe 5 Ft High Heavy Duty Cattle Panel Hot Dip Galvanized

Name: Iron Round Pipe 5 Ft High Heavy Duty Cattle Panel Hot Dip Galvanized
Brand: AOBIAO
Price: 1 USD

Iron Round Pipe 5 Ft High Heavy Duty Cattle Panel Hot Dip Galvanized Manufactures

Brand Name : AOBIAO

Model Number : FSL-CP-004

Certification : ISO, CE

Place of Origin : Anping China

MOQ : 50 pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 400pcs per week

Delivery Time : about 25-30 days after receiving the deposit.

Packaging Details : in bulk or on pallet

Porduct name : Iron Round Pipe 5ft High Hot Dip Galvanized Livestock Bull Panels

Usage : Farm;Cattle,Sheep,Horse and other livestock

Thickness : 1.5mm,1.8mm,2.0mm

Panel Height : 5ft(1.5m), 6ft(1.8m), etc.

Panel Length : 10ft,12ft,14ft

Material : Q235 steel pipe

Round pipe diameter : 32mm,38mm,42mm

Frame Pipe : 32OD,38OD,42OD

Surface treatment : Hot dip galvanized, powder coated

Applicant : Garden Fence, Farm Fence

Contact Now

Iron Round Pipe 5ft High Hot Dip Galvanized Livestock Bull Panels

Bull panels description

Easy to use

Reduce space between panels
Usable on uneven ground
Allow 3 or 4-way connections for pens

18 gauge J-legs have a small contact point with the ground to prevent unwanted panel movement

Long-lasting UV resistant powder coat paint

All corral panels are 4″ less than the listed length to allow proper clearance and installation

Bull panels specification

Round Tube Style
Height*Length	1M2.1M,1M2.9M,1.8M*2.1M
Horizontal Rails	32mmOD,42mmOD,(6Round rail)
Vertical pipe	32mmOD,42mmOD
Thickness	1.6mm,2.0mm
Material	Pre Hot Dipped Galvanized Steel Pipe
Accessories	4Lugs,2Rain Caps Are Welded On Panel2 Pins Are Included In 1 Panel
Square Tube Style
Height*Length	1M2.1M,1M2.9M,1.8M*2.1M
Horizontal Rails	40×40mm,50×50mm,(6 oval rail)
Vertical pipe	40×40mm,50×50mm
Thickness	1.5mm,2.0mm
Material	Pre Hot Dipped Galvanized Steel Pipe
Accessories	2Lugs,2Rain Caps Are Welded On Panel2 Pins Are Included In 1 Panel
Oval Rail With Square Post Style
Height*Length	1M2.1M,1M2.9M,1.8M*2.1M
Horizontal Rails	30×60mm,40×80mm,42×115mm,50×70mm(6 oval rail)
Vertical pipe	40×40mm,50×50mm
Thickness	1.5mm,2.0mm
Material	Pre Hot Dipped Galvanized Steel Pipe
Accessories	2Lugs,2Rain Caps Are Welded On Panel2 Pins Are Included In 1 Panel
Note:we can custom made according to your request

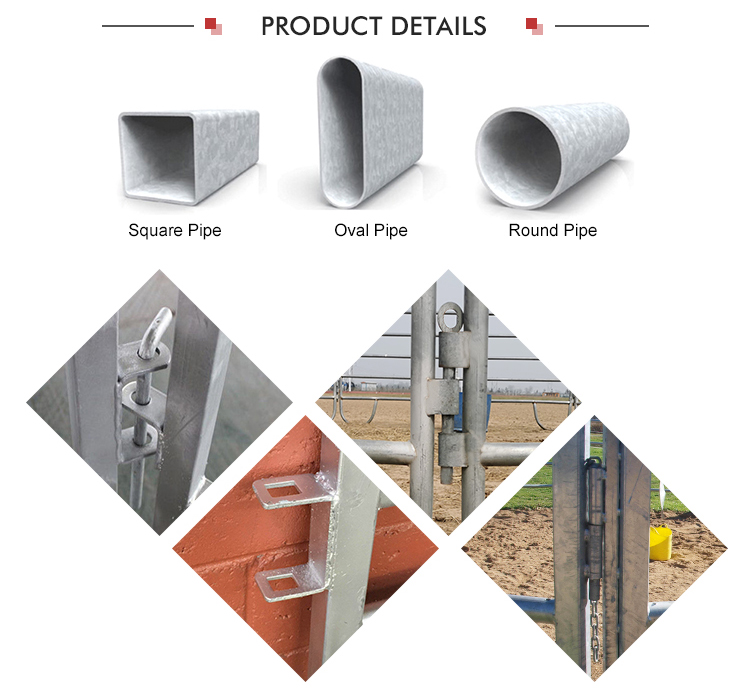

Bull panels details

Iron Round Pipe 5 Ft High Heavy Duty Cattle Panel Hot Dip Galvanized

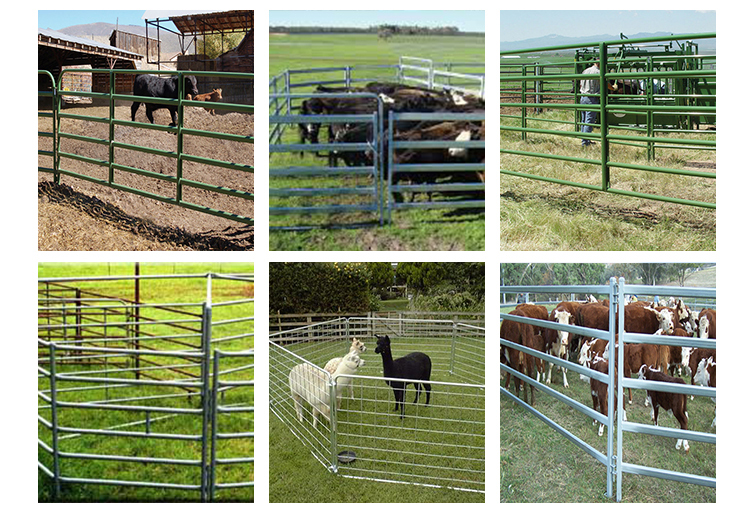

Bull panels display

Iron Round Pipe 5 Ft High Heavy Duty Cattle Panel Hot Dip Galvanized

Bull panels usage

It is used in cattle yards, sheep yards, horse yards, and all need high-security protection livestock yards.
Field fence is a kind of mesh used in cattle, goats, deer, and pigs.
Papadopoulos grassland, forestry, highway, and environment.
It is used for grassland, pastures, protection of ecological projects.

Iron Round Pipe 5 Ft High Heavy Duty Cattle Panel Hot Dip Galvanized

Bull panels packing

1>There is a layer of bubble wrap at the bottom of the pallet, which can protect the last barrier;

2>There is a small piece of carton paper between every two barriers to prevent rubbing against each other;

3>There is also carton paper under the pacing belt;

4>Finally all barriers will be packed with several layers of plastic film.
